Vulnerabilities

Memory Safety Vulnerabilities¶

Buffer Overflow¶

Buffer overflow vulnerabilities are a particular risk in C

Absence of automatic bounds-checking for array or pointer accesses: if the programmer declares an array char buffer[4], C will not automatically throw an error if the programmer tries to access buffer[5]

char buf[8];
int authenticated = 0;
void vulnerable() {
    gets(buf);
}

Defined outside of the function, char buf[8] and authenticated are both located in the static part of memory.
In C, static memory is filled in the order that variables are defined, so authenticated is at a higher address in memory than buf

static: | | |---| |authenticated| |buf| |buf| ||

If the attacker can write 9 bytes of data to buf (with the 9^th byte set to a non-zero value), then this will set the authenticated flag to true, and the attacker will be able to gain access.

char buf[8];
int (*fnptr)();
void vulnerable() {
    gets(buf);
}

| | |---| | fnptr | |buf| |buf| ||

the attacker can overwrite fnptr with any address of their choosing, redirecting program execution to some other memory location

Stack Smashing¶

One powerful method for exploiting buffer overrun vulnerabilities takes advantage of the way local variables are laid out on the stack.

Stack Memory Layout¶

void vulnerable() {
    char buf[8];
    gets(buf);
}

stack: || |---| |rip of vulnerable| |fsp of vulnerable| |buf| |buf| ||

Data storage order: - The stack only grows down when we call a new function and need to allocate additional memory. When we call gets, user input is still written from lower addresses to higher addresses. - x86 is little-endian

Attack¶

shellcode at a known address input: AAAAAAAAAAAA\xef\xbe\xad\xde

0xDEADBEEF

AAAA

AAAA

AAAA
shellcode injection
short: || |---| |&buf| |AAAA| |shellcode| |shellcode| ||
long: || |---| |shellcode| |&rip + 4| |AAAA| |AAAA| |AAAA| ||

Vulnerable C Library Functions¶

gets -> fgets

char name[20];
fgets(name, sizeof(name), stdin);

strcpy -> strncpy / strlcpy
strlen -> strnlen
sprintf -> snprintf

Integer Overflow¶

C compiler won’t warn about the type mismatch between signed int and unsigned int; it silently inserts an implicit cast.

void *memcpy(void *dest, const void *src, size_t n);

typedef unsigned int size_t;

char buf[8];
void vulnerable() {
    int len = read_int_from_network();
    char *p = read_string_from_network();
    if (len > 8) {
        error("length too large: bad dog, no cookie for you!");
        return;
    }
    memcpy(buf, p, len);
}

paylaod: a negative len

void vulnerable() {
    size_t len;
    char *buf;

    len = read_int_from_network();
    buf = malloc(len+5);
    read(fd, buf, len);
    ...
}

payload: a large len e.g. 0xFFFFFFFF In this case, the code allocates a 4-byte buffer and then writes a lot more than 4 bytes into it: a classic buffer overflow.

check bounds whenever add to integers

void safe(size_t len, char *data){
    if (len > MAX_SIZE - 2) {
        return;
    }
    char *buf = malloc(len + 2);
    if (!buf) {
        return;
    }
    memcpy(buf, data, len);
    buf[len] = '\n';
    buf[len + 1] '\0';
}

Format string vulnerabilities¶

printf("x has the value %d, y has the value %d, z has the value %d \n", x, y, z);

arguments to a function are pushed onto the stack in reverse order || |---| |z| |y| |x| |&"x has the value %d, y has the value %d, z has the value %d \n"| |rip of printf| |sfp of printf|

In cases of a mismatch, it will fetch some data from the stack that does not belong to the function call.

printf("x has the value %d, y has the value %d, z has the value %d \n", x, y);

%n → Treat the argument as an address and write the number of characters that have been printed so far to that address

printf("item %d:%n", 3, &val);   // store 7 in val

mismatch:

printf("000%n");    // write 3 to the integer pointed to by address located 8 bytes above the RIP of printf

|| |---| |??? // fetch this as the second argument, treat it as a pointer|
|&"000%n" // the first argument|
|rip of printf| |fsp of printf|

char buf[64]

void vulnerable(void) {
    char *secret_string = "pancake";
    int secret_number = 42;
    if (fgets(buf, 64, stdin) == NULL) {
        return;
    }
    printf(buf);
}

|| |---| |&secret_string| |secret_number| |&buf -> "%d%n"| |rip of printf| ||

input: %d%n
output: 42 write 2 to the secret_string

never use untrusted input in the first argument of printf

printf("%s", buf);

Heap Vulnerability¶

Objects are allocated in the heap (using malloc in C and new in C++...)

Heap Overflow¶

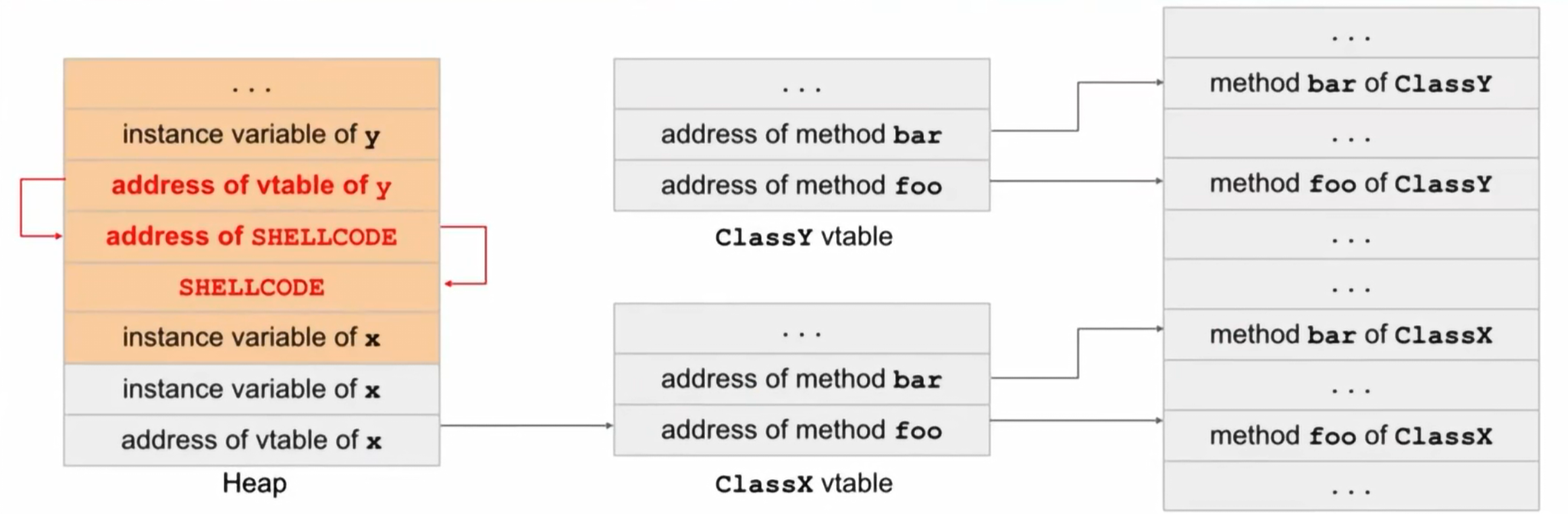

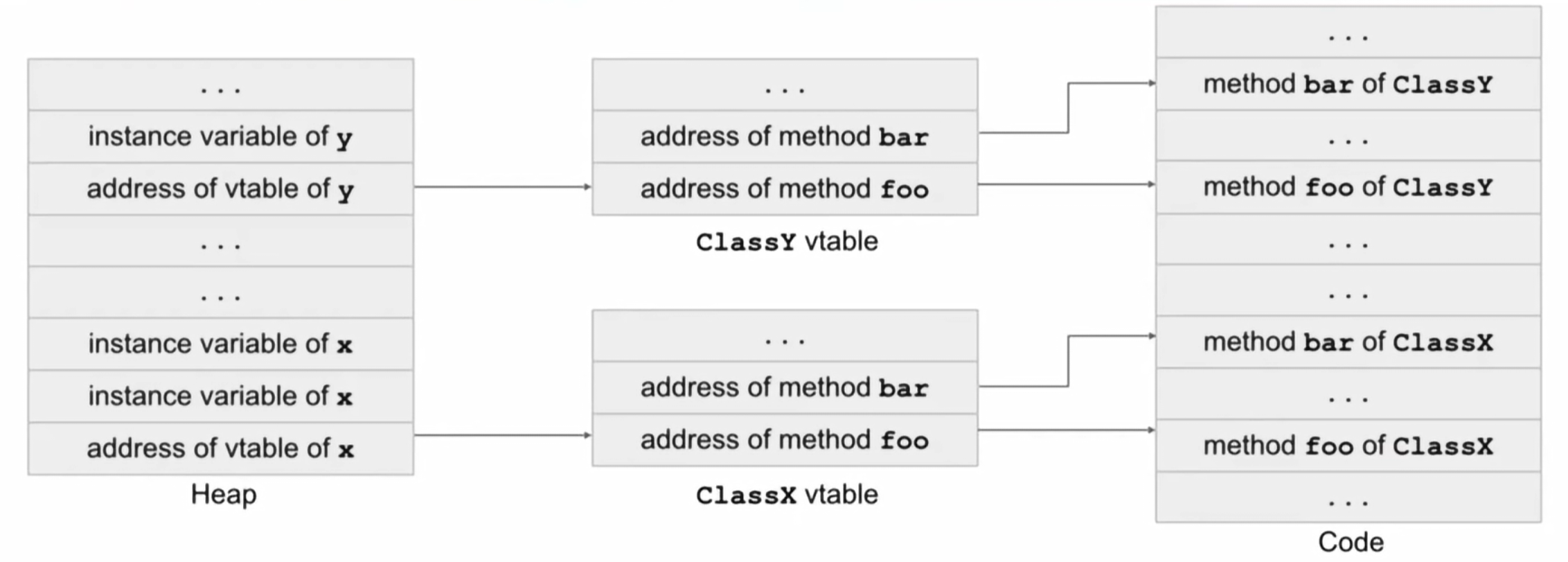

C++ vtable Each class has a virtual table (table of function pointers), and each object points to its class's vtable Suppose an instance variable of x is a buffer that we can overflow: when y calls its method, the shellcode will be executed

Use-after-free¶

void test_uaf() {
    int *arr1 = malloc(10 * sizeof(int));
    free(arr1); // the memory is freed, but arr1 still points to it

    int *arr2 = malloc(10 * sizeof(int));
    for (int i = 0; i < 10; i++) {
        arr2[i] = i + 100;
    }

    printf("UAF: %d\n", arr1[0]); // might print 100
}
