Symmetric
Symmetric-Key Encryption¶
we are going to assume that all messages are bitstrings, which is a sequence of bits, 0 or 1
Symmtric-Key Encrytion¶
Algorithm: $$ \begin{aligned} K = KeyGen() \ C = Enc(M, K) \ M = Dec(C, K) \end{aligned} $$ Correctness: $$ Dec(Enc(M), K) = K $$
One Time Pad (OTP)¶
Encryption: \(C = M \oplus K\) Decryption: \(M = C \oplus K\)
Correctness: \((M \oplus K) \oplus K = M\)
Drawback: The shared key cannot be reused to transmit another message
if a key is uesd twice:
Block Ciphers¶
Encryption takes in an n-bit plaintext and a k-bit key as input and outputs an n-bit ciphertext. Decryption takes in an n-bit ciphertext and a k-bit key as input and outputs an n-bit plaintext. $$ E:{0,1}^n \times {0,1}^k -> {0, 1}^n $$ given K: $$ E_k:{0,1}^n -> {0, 1}^n $$
AES: k = 128, 192, 256
Correctness: \(Ek(M)\) should be bijective Efficiency: XORs and bit-shifting (fast) Security: - computationally indistinguishable from random permutation - not IND-CPA secure since it's deterministic
Block Cipher Modes of Operation¶
Issues of block cipher: - fixed-length message - determinitic
To fix these problems, the encryption algorithm can either be randomized or stateful. The decryption algorithm, however, is neither randomized nor stateful.
ECB Mode (Electronic Code Book) - break M into n-bit blocks - encode each block - concatenate
encryption: \(C_i = E_k(M_i)\)
decryption: \(M_i = D_k(C_i)\)

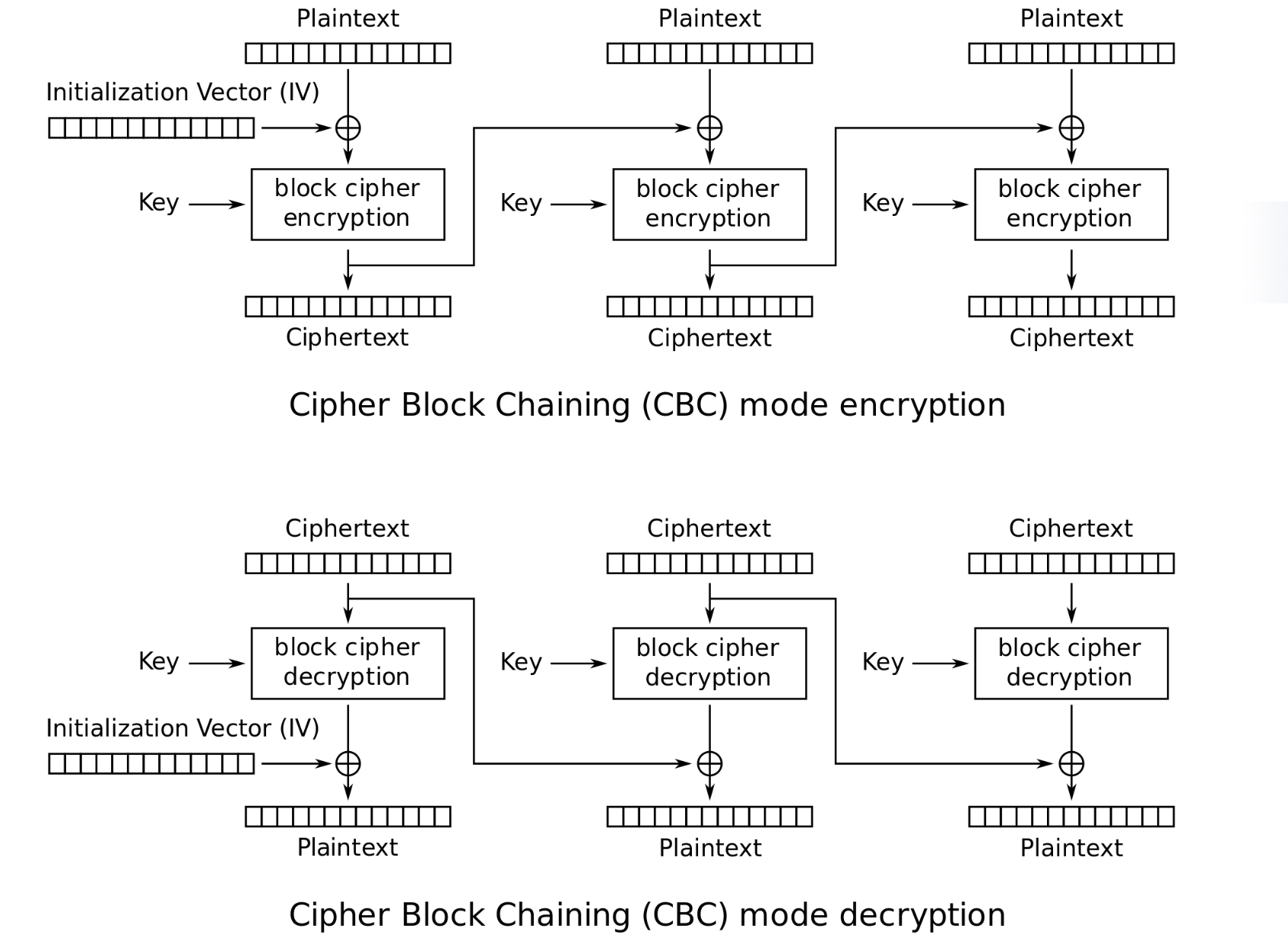

CBC Mode (Cipher Block Chaining)
Probabilistic Encryption if IV is random
CFB Mode (Ciphertext Feedback Mode)
OFB Mode (Output Feedback Mode)

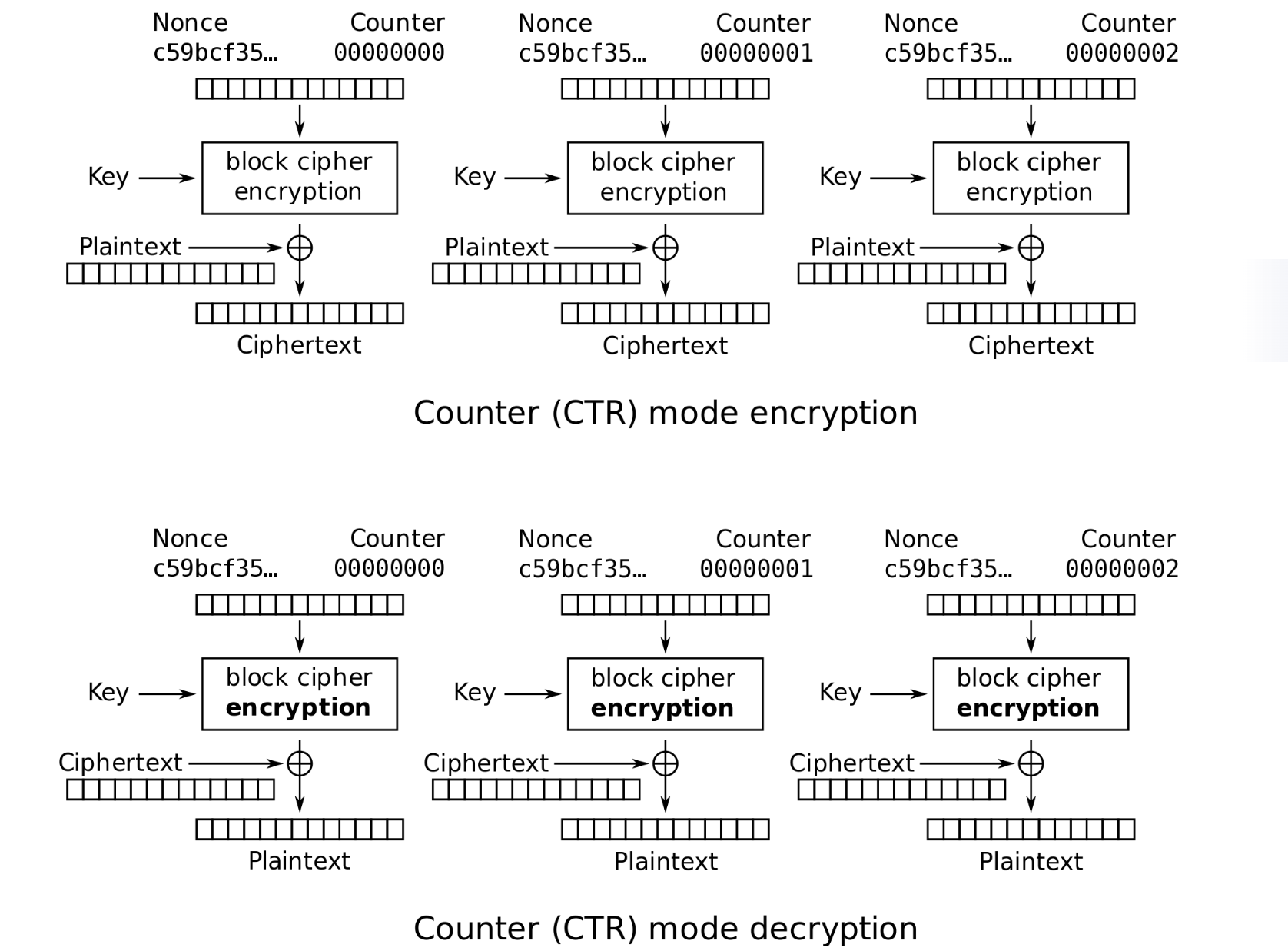

Counter (CTR) Mode
encryption: \(C_i = E_k(IV||i) \oplus M_i\)
decryption: \(M_i = E_k(IV||i) \oplus C_i\)
| sequential | parallel |
|---|---|
https://textbook.cs161.org/crypto/symmetric.html#64-block-ciphers
Padding¶
Padding is the process of adding extra data to a message before encryption to ensure its length meets the specific requirements of the cryptographic algorithm.
One correct padding scheme is PKCS#7 padding. In this scheme, we pad the message by the number of padding bytes used.
AES¶
AES encryption operates on a block of data through multiple rounds of processing. Each round applies a set of reversible transformations to a two-dimensional 4x4 array of bytes called the State.
The main steps for encrypting a single 128-bit block are:
Key Expansion The original cipher key is used to derive a set of round keys (a key schedule) using the Rijndael key schedule algorithm.
Initial Round: - AddRoundKey Each byte of the state is combined with a round key using bitwise XOR.
Main Rounds (Repeated for 9, 11, or 13 rounds depending on key size): - SubBytes A non-linear substitution step where each byte is replaced with another byte according to a lookup table (S-box). This provides confusion. - ShiftRows A transposition step where each row of the state is shifted cyclically a certain number of steps. The first row is not shifted, the second is shifted by one, etc. This provides diffusion. - MixColumns A mixing operation which operates on the columns of the state, combining the four bytes in each column. This also provides diffusion. - AddRoundKey The round key is XOR'd with the state again.
Final Round (No MixColumns):
- SubBytes
- ShiftRows
- AddRoundKey
Message Authentication Codes (MACs)¶
A MAC is a keyed checksum of the message that is sent along with the message. It takes in a fixed-length secret key and an arbitrary-length message, and outputs a fixed-length checksum. A secure MAC has the property that any change to the message will render the checksum invalid.
Alice: compute a MAC \(T = F(K,M)\) send \((M,T)\) to Bob
Bob: recompute \(F(K,M)\) and check if it matches \(T\)
Diffie-Hellman key exchange¶
One-way functions
Discrete logarithm problem:
\(f(x) = g^x \pmod p\), where \(p\) is a large prime and \(g\) is a specially-chosen generator
Given \(f(x)\), there is no known efficient algorithm to solve for \(x\).
Alice picks a secret \(a \in \{0,1,...,p-2\}\) and computes \(A=g^a \mod p\). Bob picks a secret \(b\) and computes \(B=g^b \mod p\).
Alice compute $$ S=B^a = g^{ab} $$
Bob compute $$ S=A^b = g^{ab} $$
